VF Series Pinch Valves (Robust)

The VF Series is a simple, reliable and robust pinch valve with no mechanical moving parts. Features a powder coated aluminium housing and flanges to withstand harsh operating environments.

VF Series

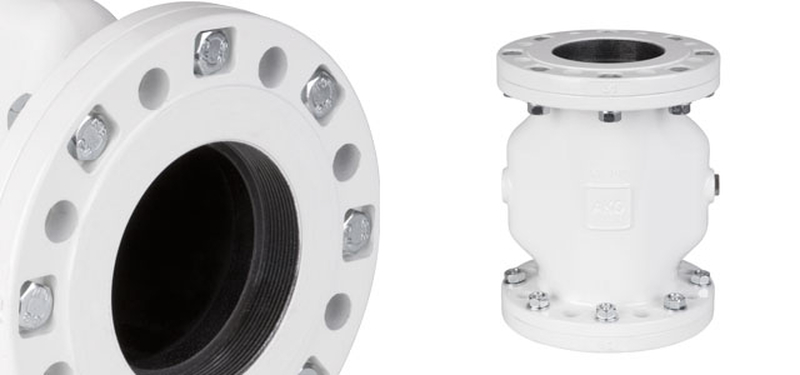

Aluminum flange with internal thread.

VF Series

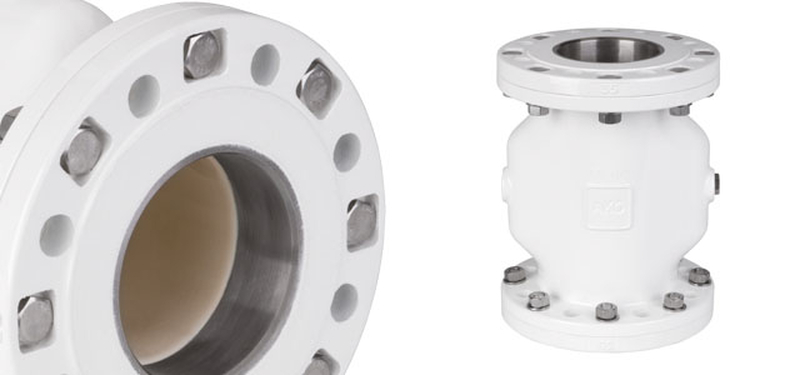

Aluminum flange with stainless steel / steel bushing.

VF Series

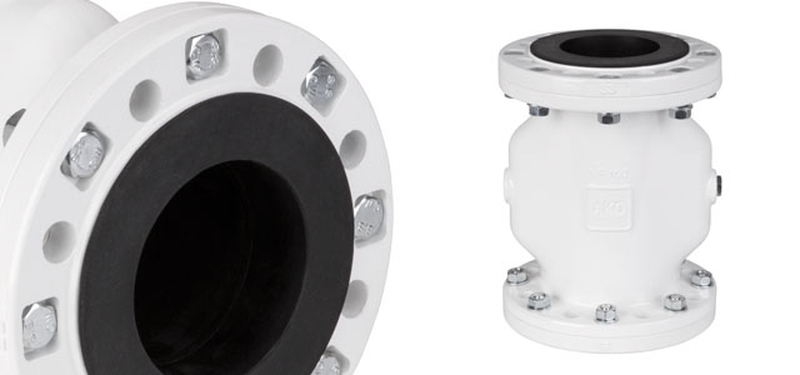

Aluminum flange with flange sleeve.

VF Series

Standard aluminum flange and body.

Valve Configuration

● Nominal diameters from DN40 to DN250.

● Flange connection complying with DIN EN 1092 (PN10/16) as standard or ANSI B 16.5- 150lbs on request.

Flange Material Configuration

● Powder-coated aluminium flange.

● Aluminium flange with steel bushing.

● Aluminium flange with stainless steel bushing.

● Aluminium flange with flanged sleeve.

● Aluminium flange with internal thread.

Documentation

Datasheet: VF series Datasheet (1.2 Mb)

Datasheet: Sleeve Qualities (259 Kb)

Operating Instructions: Operating instructions for air operated pinch valves (5.2 Mb)

Maintenance / Repair Instructions: VF Series, DN40-80 (1.4 Mb)

Maintenance / Repair Instructions: VF Series, DN100-300 (1.3 Mb)
